Indoor Rental LED Display

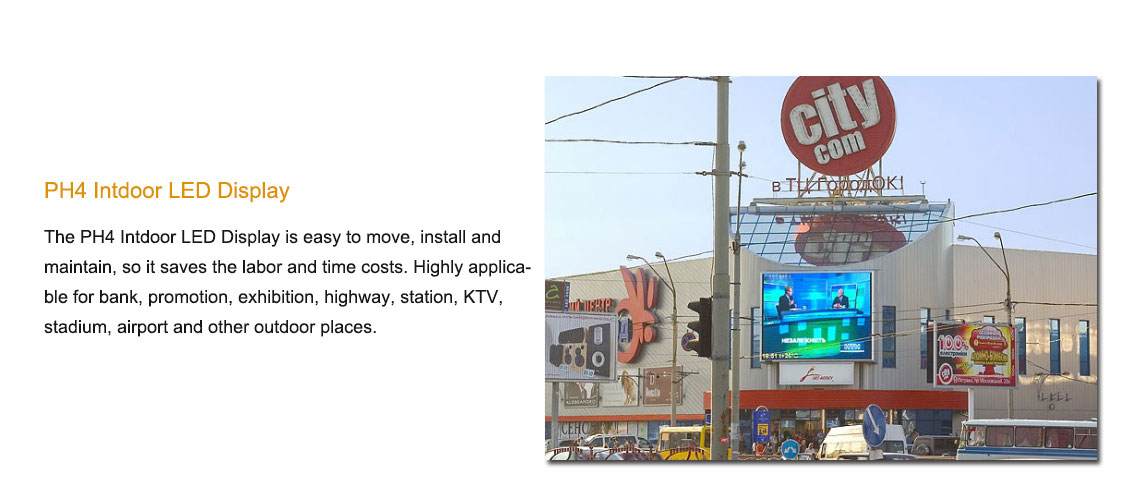

PH4 Intdoor SMD LED Display 1024×1024m

Product ID：
Shooting Angle：
Video pixel：
Shelf time：
Product description:Model No.型号P4Pixel Pitch像素间距4mmModule Size模组尺寸256*128mmPixel Density像素密度62500 /m2Pixel composit

Model No.型号	P4
Pixel Pitch像素间距	4mm

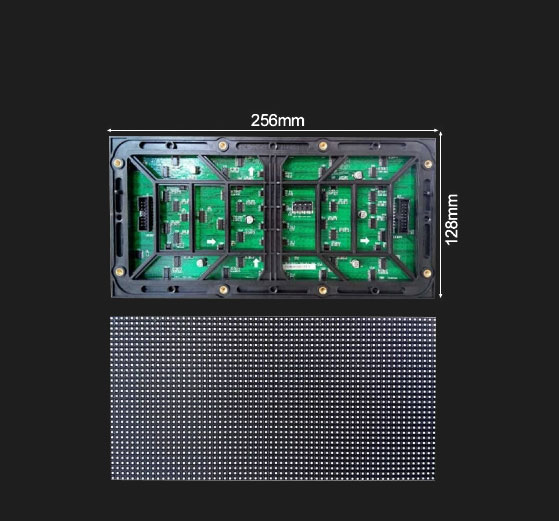

Module Size模组尺寸	256*128mm
Pixel Density像素密度	62500 /m2
Pixel composition 像素组成	1R1G1B
Module Resolution 模块分辨率	64dots(W)*32dots(H)
The Optimum Viewing Distance最佳观看距离	≥4m

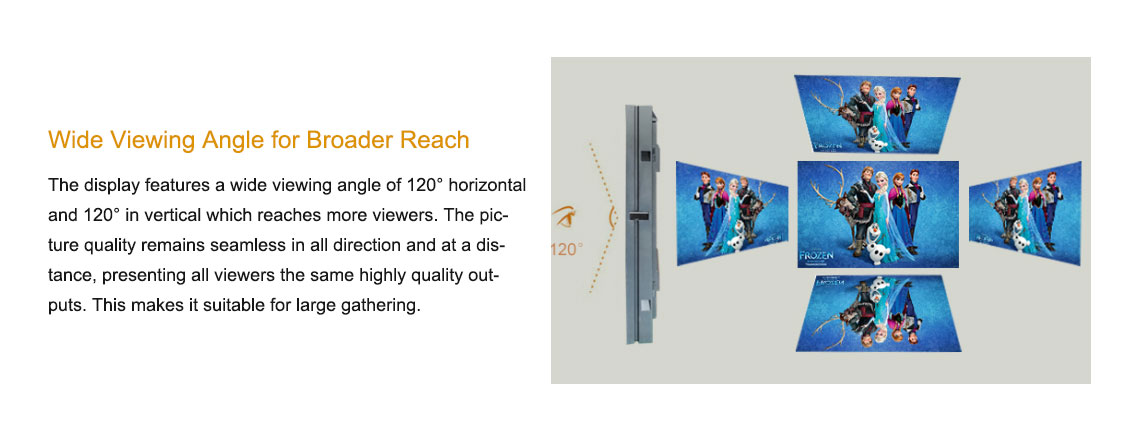

The Optimum Viewing Angle最佳视角	160°(W) 120°(H)
Maximum Power Consumption最大功耗	32W

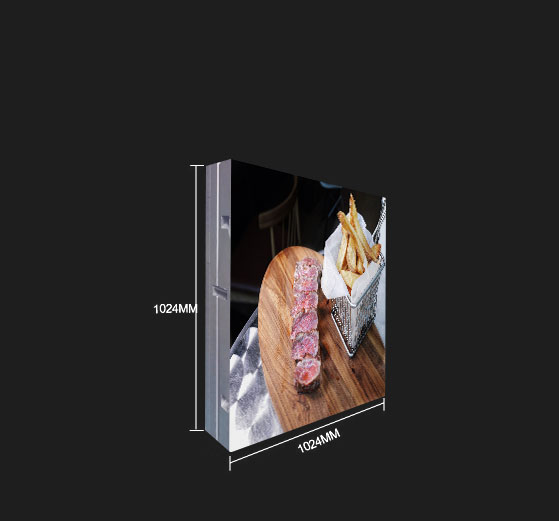

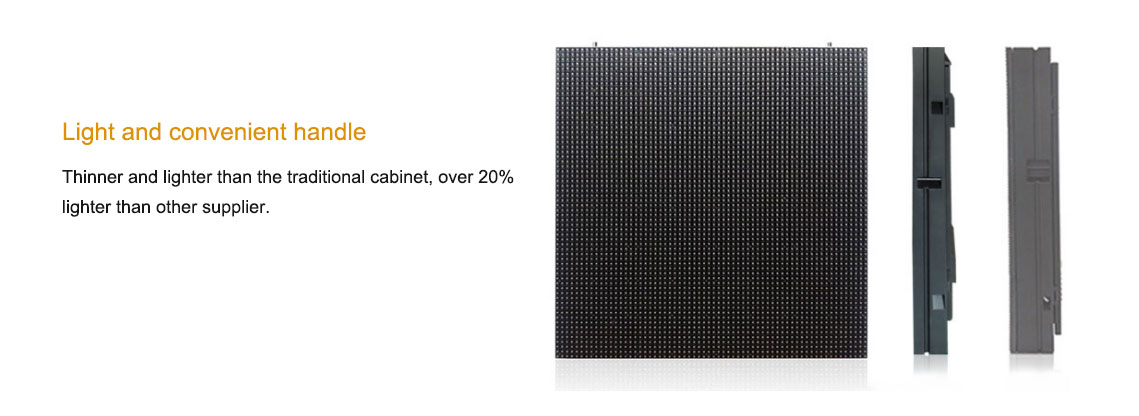

Standard Cabinet Size箱体尺寸	1024*1024mm
Cabinet Weight 箱体重量	30KG
Driving Method 扫描	1/32Scan
Frame Frequency帧频	≥60Hz/s
Refresh Rate刷新率	≥180Hz
White Balance Luminance(CD/m2) 白平衡亮度（CD / m2）	≥1600 CD/SQ.M
Operating Environment Temperature操作环境温度	Between -20°C and 50°C
Operating Voltage 工作电压	220V±10%
Grey Scale灰度	Display Colors≥ 65.7trillion color(Synchronized) 显示颜色≥ 65.7trillion 颜色（同步）
Brightness Adjustment亮度调整	1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically 每个1024个等级颜色（R.G.B）即可手动调整并且可以调整每种颜色的16个等级自动
Input Signal输入信号	RF,S-Video,RSBHV,YUV,YC,COMPOSITION

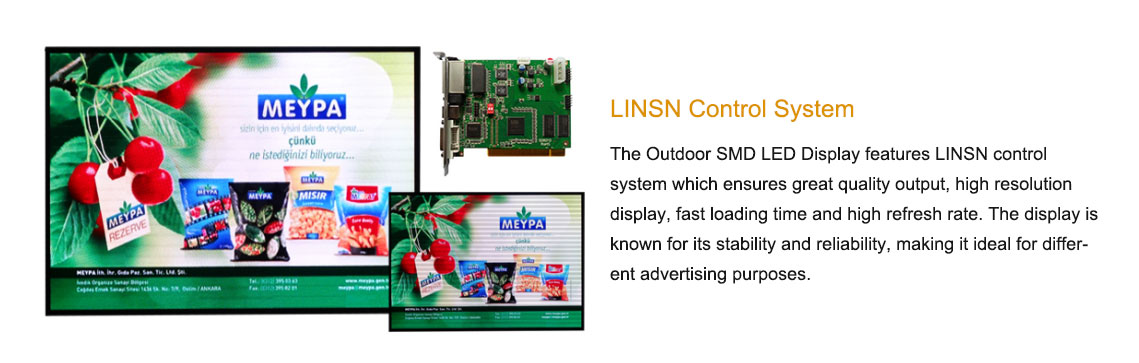

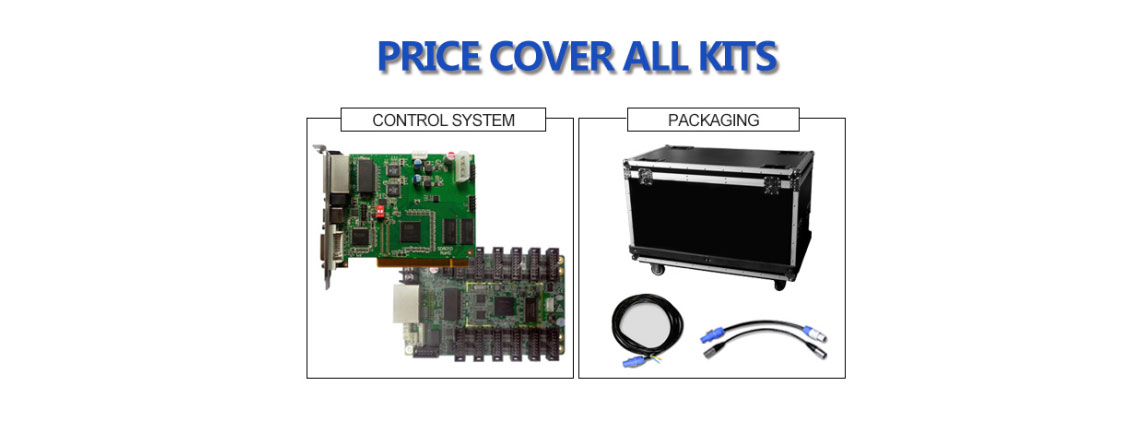

Control System	PC+DVI display card+master card + optical fiber transmission
Average No Failure 平均无故障	≥1000 hours
Time Life-span 时间寿命	>100000 hours
